Highlights
● [Offline account Activate Win10]
It is recommended that customers do not connect to any network when
starting the boot wizard for the first time to avoid system crashes..
Main Features
● Intel GEMINI LAKE J4105 CPU, 4 Cores 4 Threads 1.5 UP TO 2.5Ghz Cache
4M
Low-power desktop platform processor, stable and reliable performance,
less delay and lag.
● Intel UHD Graphics 600 GPU,up to 750MHz 4k 60Hz
Excellent video decoding capability and 4K graphics decoding, stable
graphics and signal output. Meet your requirement for high resolution
and give you an enjoyable entertainment experience.
● 8GB LPDDR4 RAM + 128GB / 256GB / 512GB mSATA SSD
Provides enough capacity to store pictures, videos, music and more,
easily meet your daily storage needs.
● 2.4GHz + 5.8GHz WiFi
dual-band dual WiFi, fast network speed, stable signal, so that your
host always maintains excellent network connection.
● Good Heat Dissipation Performance
Built-in excellent cooling fan ensures efficient and rapid heat
dissipation. Energy saving, environmental protection, and low power
consumption.
● Rich interface, support multiple devices connection
● Support Windows and Linux operation system .
Lower Power Consumption
A brainchild of the Gemini Lake Mini
PCs, the new Beelink Gemini X series are based on Gemini Lake desktop
processors of the J series, more powerful than the classic processors of
the N series that are intended for portable systems and at very low
power consumption.
GEMINI LAKE J4105 Quad Processor
Beelink Gemini X45 Basic with GEMINI
LAKE J4105 Quad processor up to 2.5GHz that integrates 8GB of RAM and
128GB/256GB/512GB storage.

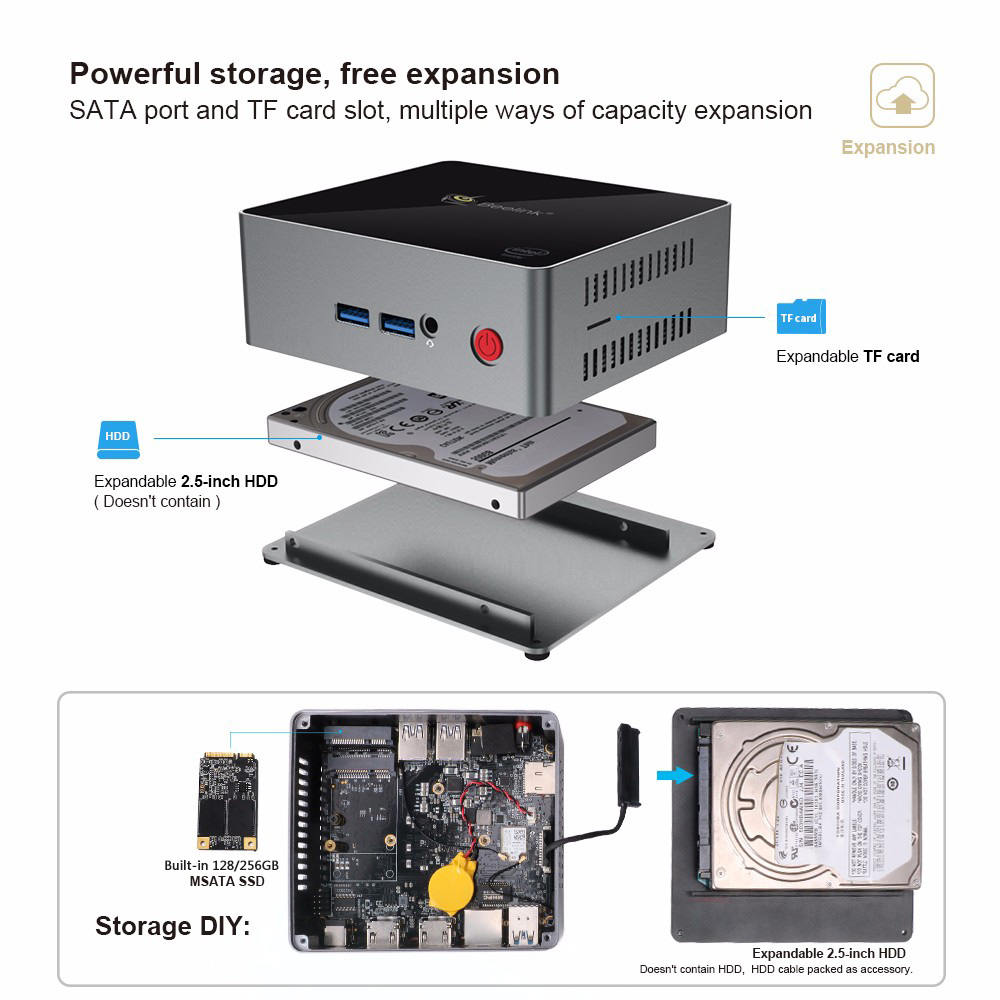

mSATA and SATA Port
Manufactured in 14nm, these
processors are suitable for office environments, web browsing, play 4K
multimedia content or simply game playing. The RAM memory turns out to
be the DDR4-2400 type, while the storage, an mSATA port, and a SATA
connector are available for mounting a 2.5-inch disk.
Dual-Band WiFi and Bluetooth
4.0
Faster Wi-Fi - something we all
crave. Fortunately, it's also something we can have on the Beelink
Gemini X series, even on a budget. The 802.11 b/g/n/ac 1x1 MIMO and
Bluetooth 4.0 combo module and Gigabit Ethernet solutions are all
implemented to accommodate even the most demanding use cases -
transferring files between devices in your home or office, streaming
video from a network-attached drive to a television, and gaming with the
lowest network latencies possible.

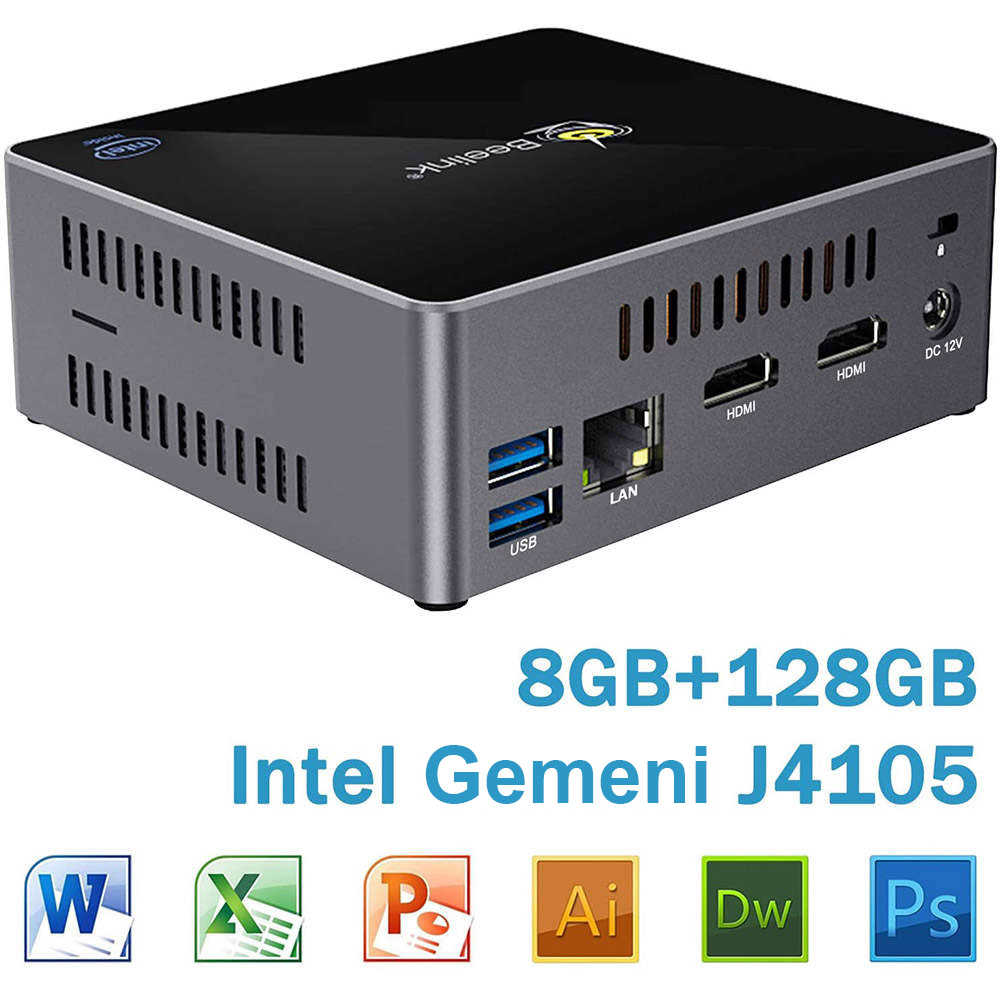

USB 3.0 Port and Gigabit LAN
While at the connector level, the
mini PCs have USB 3.0 ports, audio jack with microphone support, SD card
reader, front digital microphone for Cortana, Gigabit Ethernet port and
HDMI video output (version not specified), besides the VESA type
brackets compatible Kengsinton anchorage chassis.
Specification Brand:
Beelink
Model: Gemini X45 GEMENI
Type: Mini PC
Hardware
OS: Windows 10 64Bit
CPU: Intel GEMINI LAKE Processor J4105,,4 Cores 4 Threads
1.5Ghz,UP TO 2.5Ghz,Cache 4M
Instruction Set: 64bit
Lithography: 14nm
Graphics: Intel® UHD Graphics 600, up to 750MHz
RAM: 8GB LPDDR4
ROM: 128GB mSATA SSD
Communication
WIFI: 802.11 b/g/n/ac MIMO
Bluetooth: Bluetooth4.0
LAN: 1000M
Media
Decoder Format: H.264,H.265
Video format: 4K,4K x
2K,ASF,AVC,AVI,DAT,FLV,ISO,MP4,RM,RMVB,RV,TS,VOB,VP9,WMV
Audio format:
AAC,AC3,ACC,APE,DDP,DTS,MKA,MP3,MPEG,OGA,OGG,RM,TrueHD,WAV,WMA
Photo Format: BMP,GIF,JPEG,JPG,PNG
Sound Output: Yes, Support 5.1 Surround

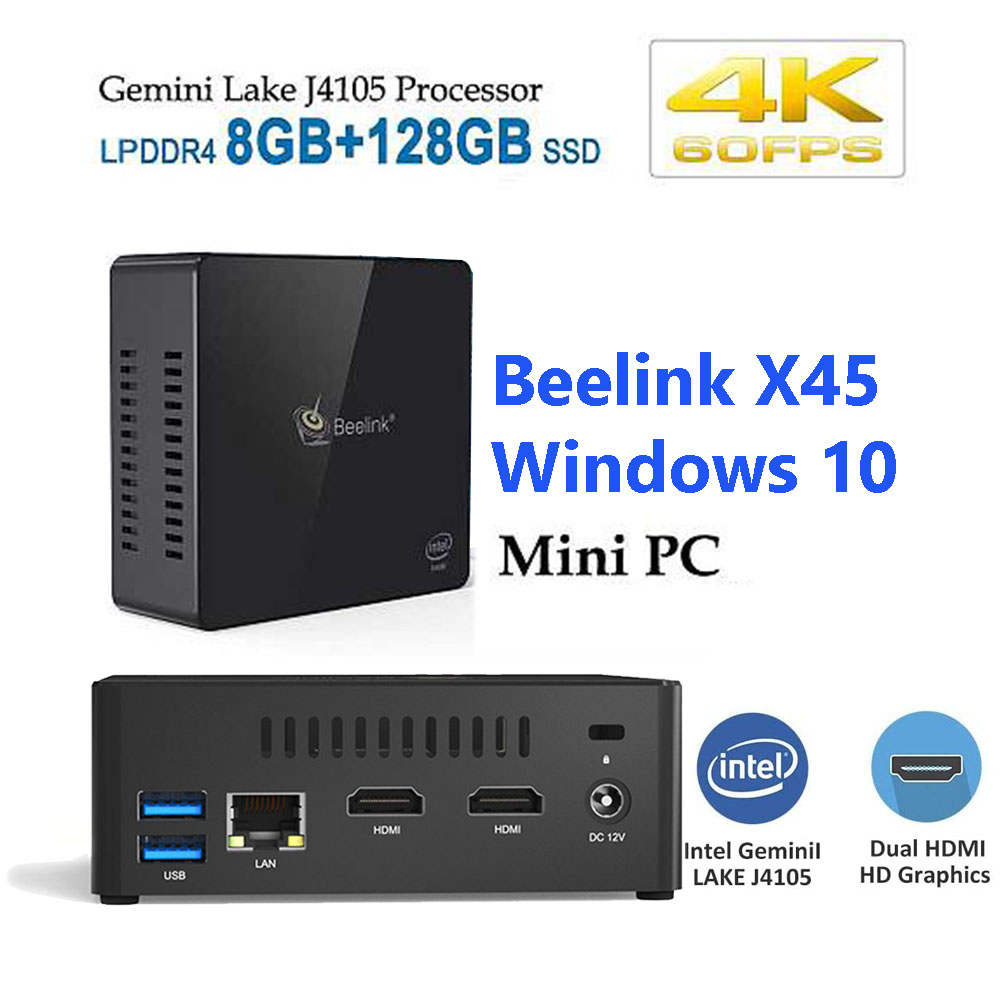

Interface
I/O
PWR BTN x1 PWR BTN With Blue LED and Power Symbol
DC JACK x1
USB x4 USB3.0
RJ45x1 10/100/1000M
HDMIx2 Standard HDMI Connector
Audio Jackx1(HP&MIC)
TF card reader x1
Internal Connector
MSATAx1
SATAx1
WIFIx1 Half length mini PCIE slot
Power Power Consumption: 12V/2A
Power Type: External Power Adapter
Power Supply: Charge Adapter
Certification: CE,FCC
Dimension&Weight Product weight: 0.3370 kg
Package weight: 0.7900 kg
Product size (L x W x H): 11.90 x 11.90 x 2.00 cm / 4.69 x 4.69 x 0.79
inches
Package size (L x W x H): 13.65 x 12.90 x 8.55 cm / 5.37 x 5.08 x 3.37
inches
Other Features
Language: Multi-language
Other Functions: ISO Files
HDMI Function: HDCP
Remote Controller Battery: 2pcs x AAA batteries

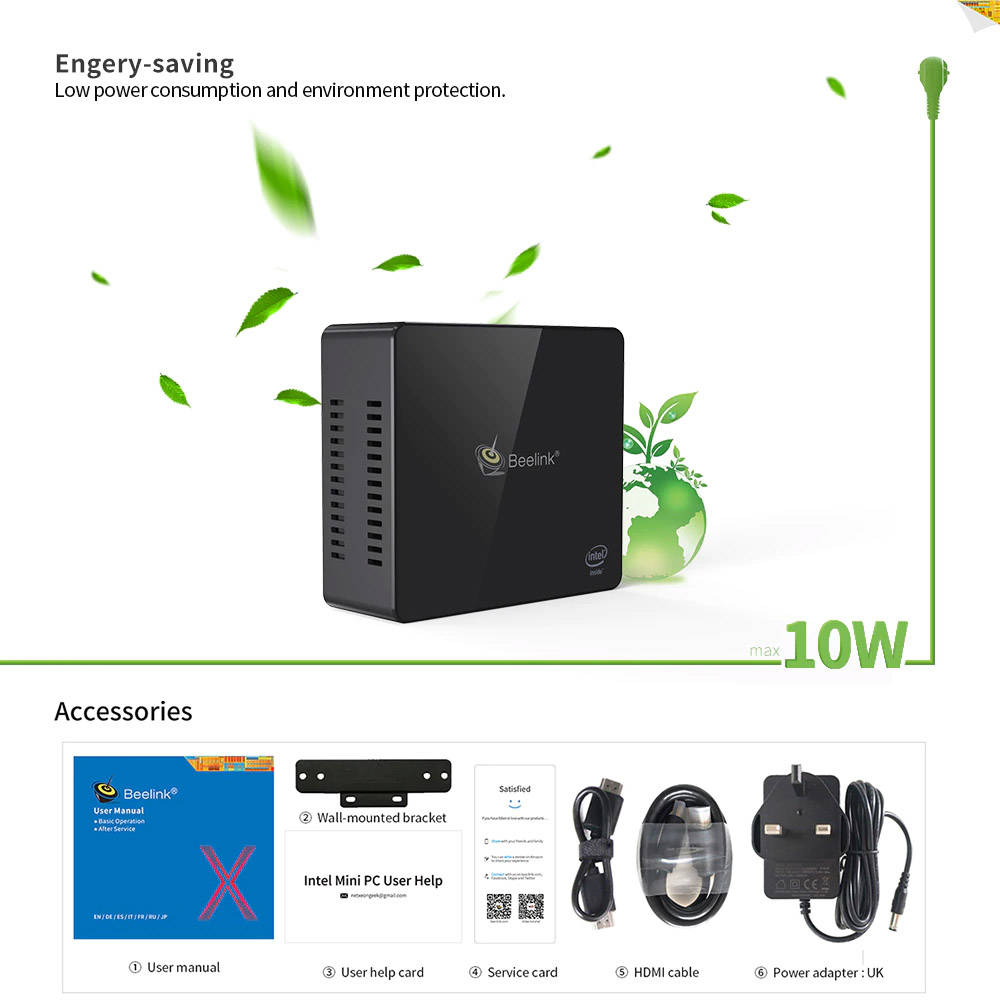

Package Contents
1x Gemini lake X45
1x Wall mounted bracket
1x Service card
1x Hard disk cable
1x Hdmi cable
1x Power cable
1x User manual
1x Activation guide
|
