Highlights

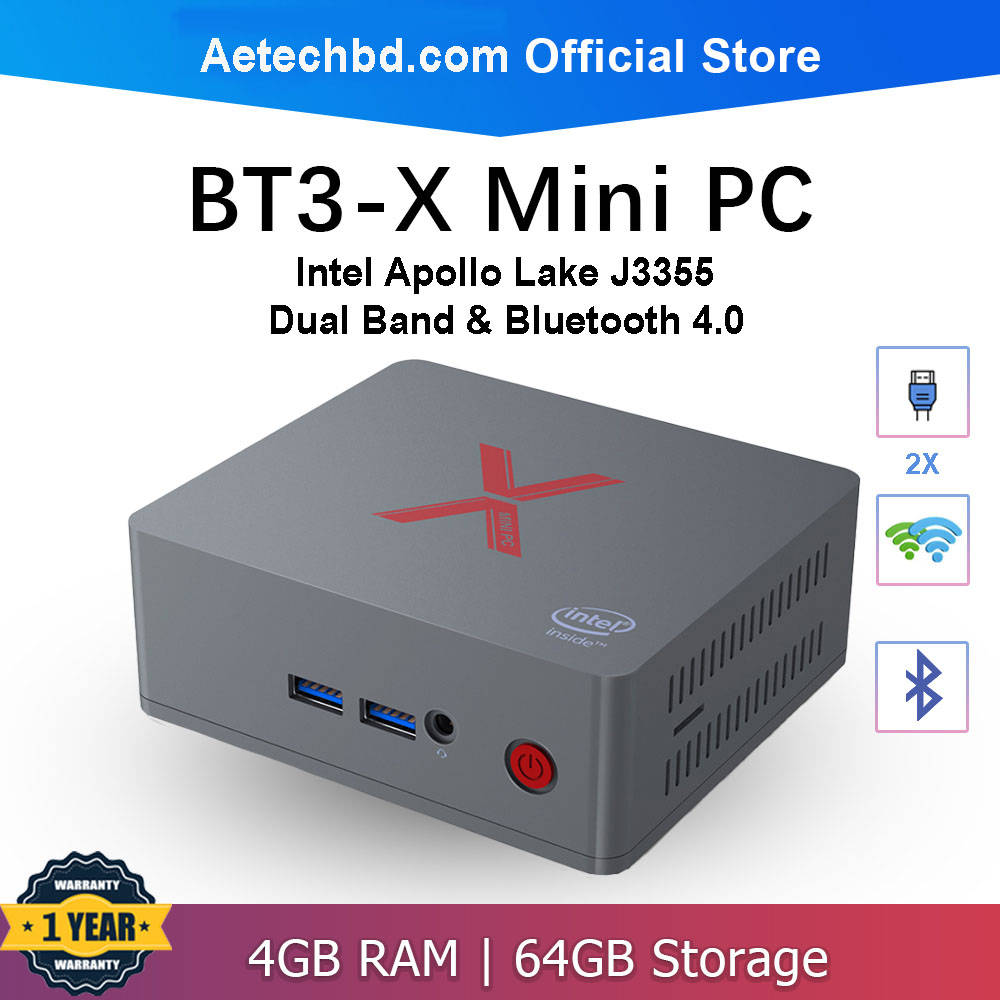

Intel Apollo Lake J3355 - BT3-X Mini PC DDR4 RAM 4GB ROM 64GB with
dual wifi 1000 Lan Ultra 4K Portable PC. The processor is based on Gold
Mont micro architecture and is manufactured on a 14 nm process. The chip
operates at 2.0 GHz with burst frequency of 2.5 GHz & has a TDP of 10 W.

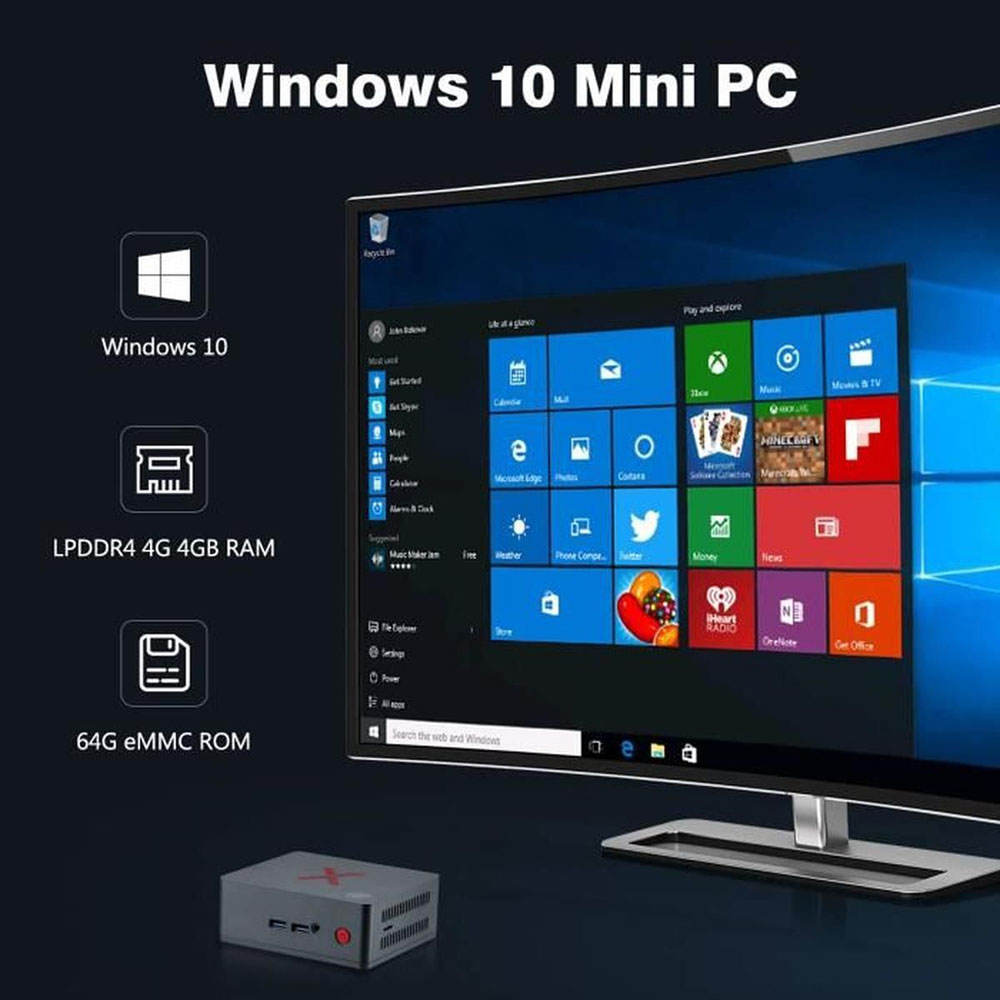

Pre-installed Windows 10 - Is pre-installed with Windows 10, so that our
users are able to enjoy the advanced functions of Windows OS directly.
Also support ubuntu.

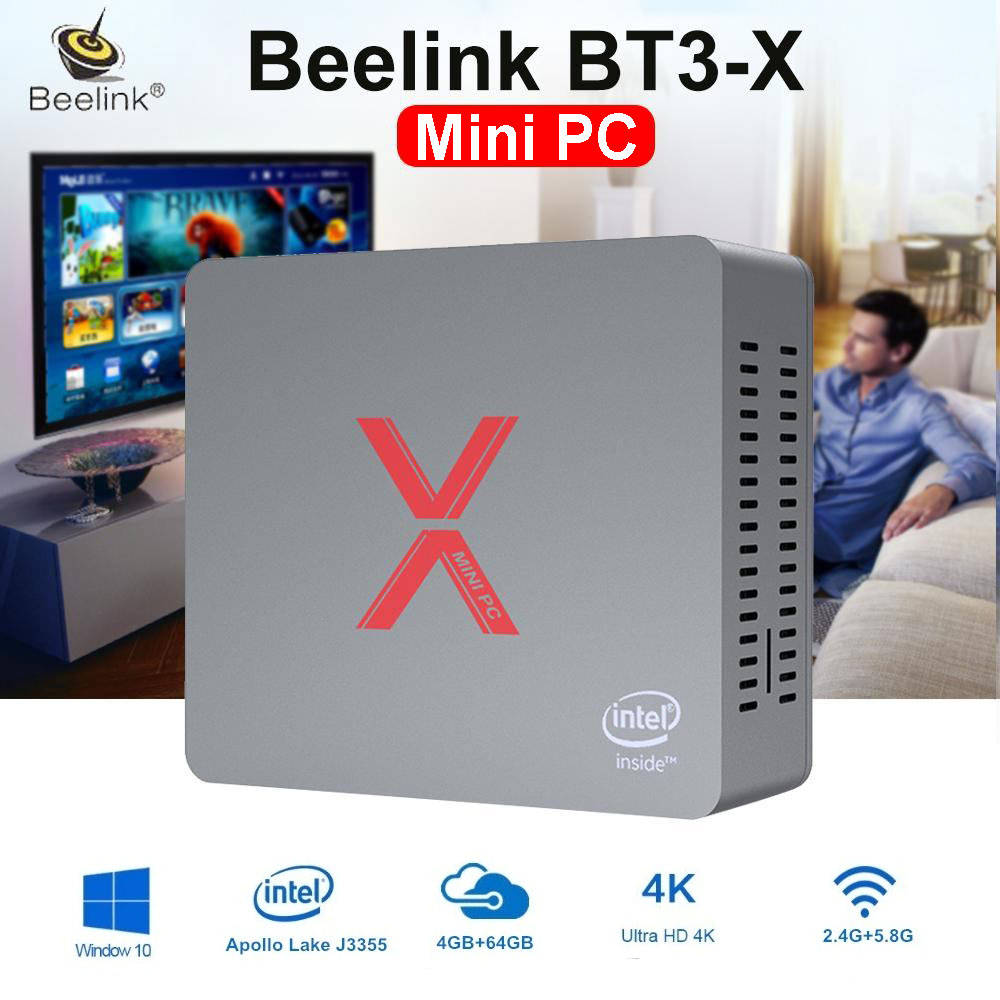

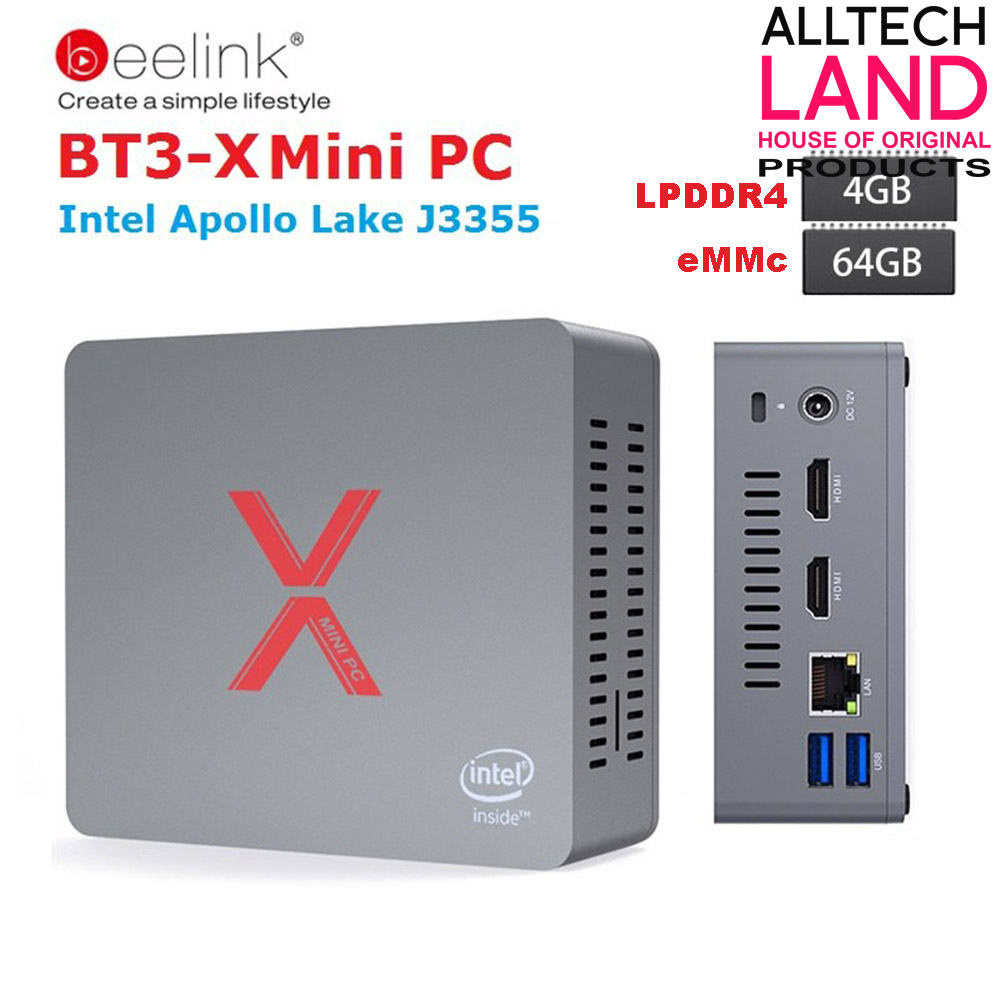

Beelink BT3-X Mini PC is equipped with
LPDDR4 4GB + eMMC 64GB, supporting stable operations and providing you with more
space and caches to enjoy your entertainment.
Dual Band WiFi support for 2.4Ghz and 5.8Ghz band, it can transmit
higher amounts of data.
Gigabit LAN can improve the net speed and the performance to a large
extent.
Main Features
* Small size, Easy to carry and save
desktop space.
* RAM
LPDDR4 4GB, Storage 64GB eMMc.
*
2*HDMI port.
Display is up to 4K*2K High Resolution
stable and reliable performance.
*
Intel HD Graphics 505 (4K 30Hz),
stable video output and graphics signal transmission, smoother picture
and clearer picture quality.
* Intel Apollo Lake J3355 is low-power mobile and desktop platform
processor with
high-end performance,

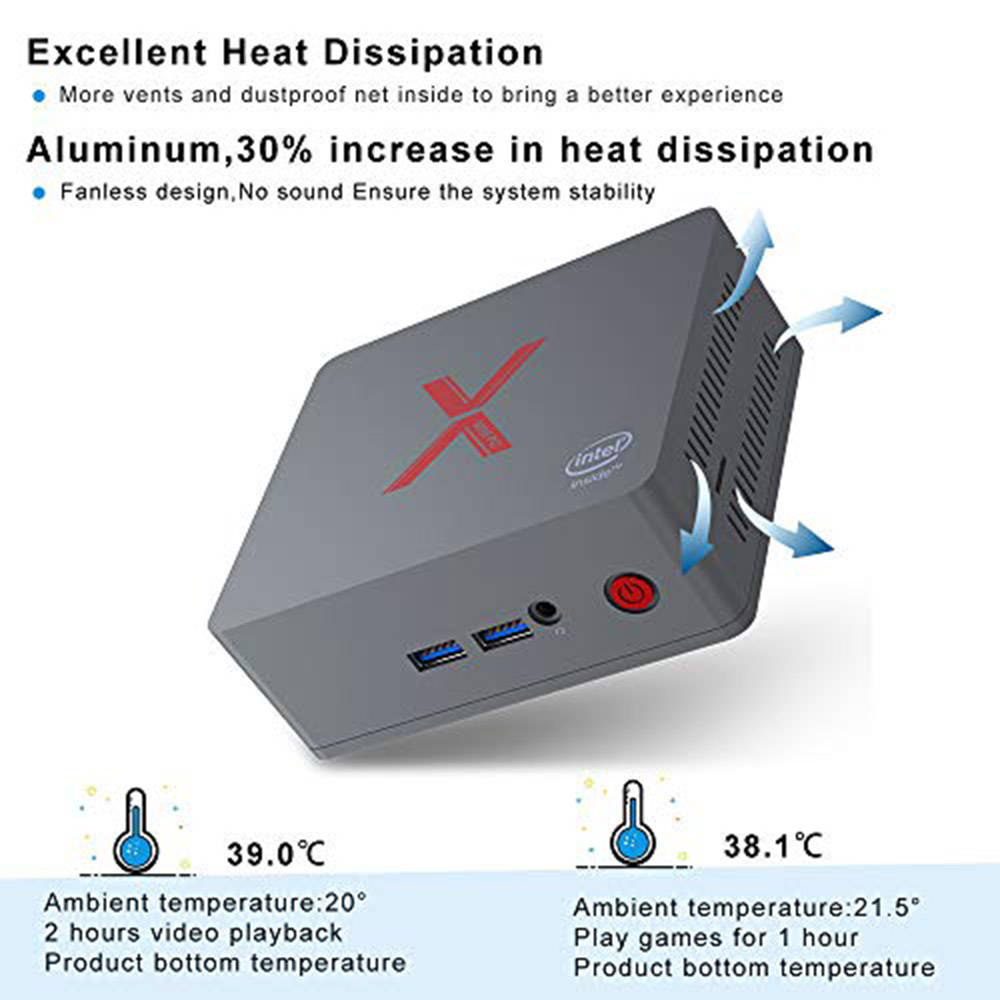

* No fan internal circulation Heat dissipation design efficiency greatly
improved
* Rich interface:
Multi-ports USB
3.0*4, MSATA, SATA 3.0, TF card reader,
DC Power Port, LAN, RJ45.
Specification
General
Brand: Beelink
Model: BT3-X
Type: Mini PC
System: Windows 10 Also support ubuntu
CPU: Intel Apollo Lake J3355
GPU: Intel HD Graphics 505
RAM: 4GB DDR4
ROM: 64GB eMMC
Work Environment -10°C--45°C,30%--90% Humidity
Storage Environment-20°C--60°C,10%--90% Humidity
Media Supported
Decoder Format: H.263,H.264,HD MPEG4
Video format: 4K,4K x
2K,AVI,DAT,ISO,MKV,MP4,MPEG,MPEG1,MPEG2,MPEG4,RM,WMV
Audio format: AAC,APE,FLAC,MP3,RM,WMA
Photo Format: GIF, JPEG, JPG, PNG
Support 5.1 Surround Sound Output: Yes
Product Details-
Communication
Wireless Lan : 802.11 b/g/n/ac Bluetooth 4.0 ( Intel 3165 )
WiFi: 2.4G/5G
LAN:1000M
Bluetooth: Yes
Language: English, Germany, Italian, Spanish, Simplified Chinese,
Media
Decoder Format: H.263, H.264, HD MPEG4
Video format: 4K, 4K x 2K, AVI, DAT,I SO, MKV, MP4, MPEG, MPEG1, MPEG2,
MPEG4, RM, WMV
Audio format: AAC, APE, FLAC, MP3, RM, WMA
Photo Format: GIF, JPEG, JPG, PNG
Support 5.1 Surround Sound Output: Yes
HDMI : Dual HDMI
Other Functions: 3D Games,3D Video, DLNA, ISO Files, Miracast, NTSC, PAL
External Subtitle Supported: Yes
Power Consumption.: 10W
RJ45 Port Speed: 1000M

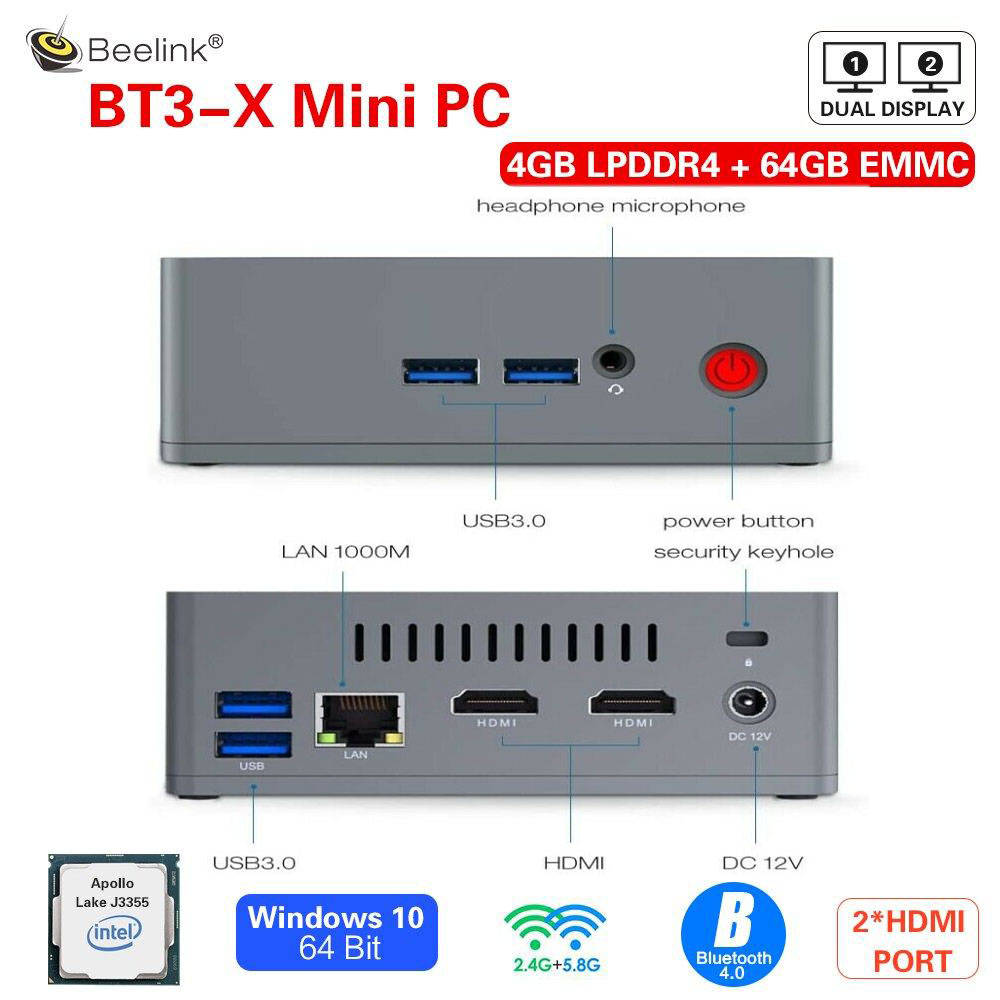

Interface
Interface: DC Power Port *1, HDMI *2, RJ45

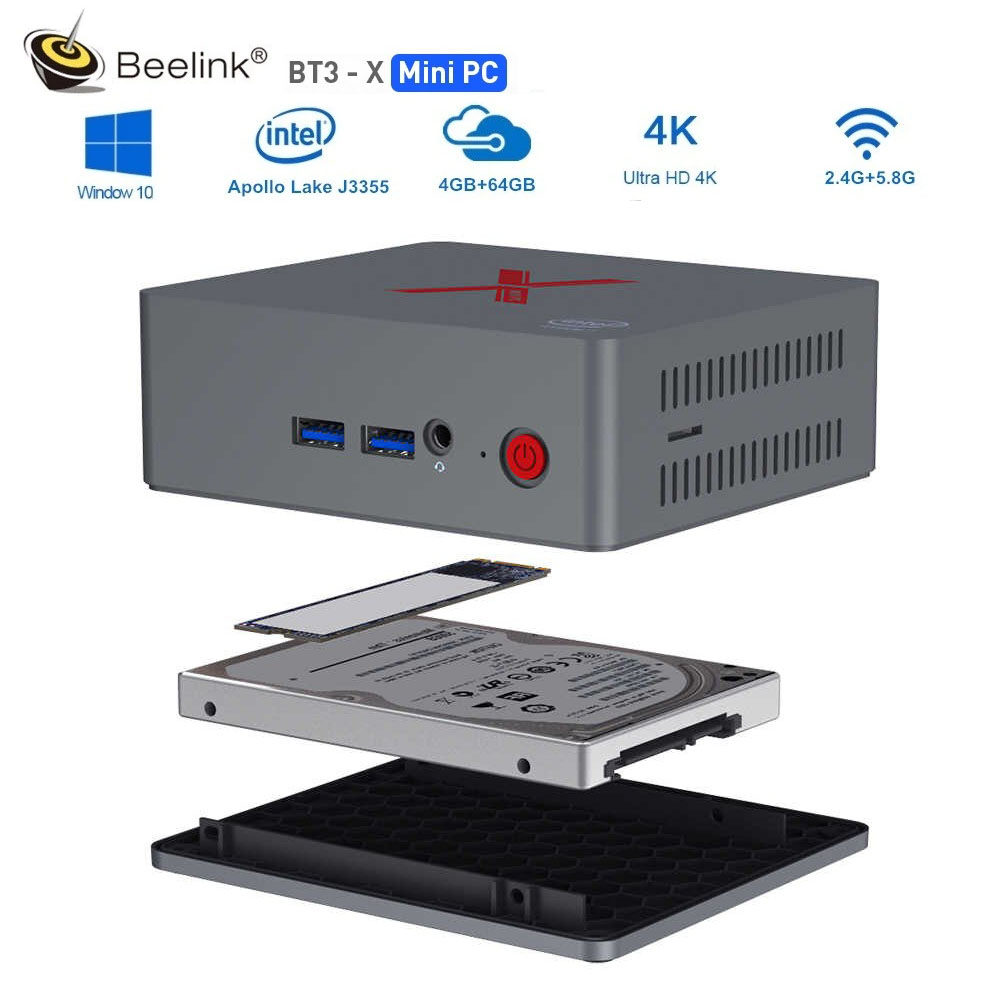

1000M*1, Audio Jack (HP&MIC)*1, TF card slot*1, USB3.0*4, Internal
Connector MSATA SSD (50*30mm)*1, MINI PCIE (30*27mm) *1, SATA HDD
(2.57-9.5mm)*1.
Power Requirement
Power Type: External Power Adapter Mode
Power Input Vol: 12V 2A
Power Adapter Input: 100-240V / 50-60Hz
Additional function
WOL
AUTO POWER ON
Dimensions and Weight
Product weight: 0.2230 kg
Package weight: 0.6400 kg
Package size (L x W x H): 19.45 x 12.25 x 5.50 cm / 7.66 x 4.82 x 2.17
inches
Package Contents
Package Contents: 1 x Mini PC, 1 x Power Adapter, 2 x HDMI Cable, 1 x
Holder, 1 x Set of Screws, 1 x English Manual.
|
