GTC IPC-T8610 PAN / TILT IP WIFI CAMERA
* 64 GB SD Card ,
* WIFI
* 12 VOLT

IPC-T8610 HD Wireless IP Camera Wifi MegaPixel with Pan/Tilt SD Card Slot and IR Cut 720p(1280x720)
Features System security Account, password authority management
Free DDNS Free DDNS, supports dynamic IP.
View by phone Support HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)
Local Storage support up to 32GB MicroSD card ,24-hour loop recording.

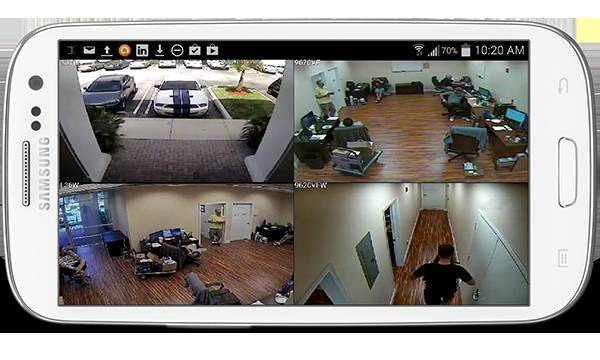

Monitor Advantage Support PC computer monitoring, smartphone multi-pic view.
PnP Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and
power adapter, 2.install APP, scan UID code to add camera.
3,Click online camera to view the camera.
Sever cluster Using Amazon Cloud PnP servier cluster, intelligent application and super stable
UID Technology UID scan technology applied, easy to operate, and highly confidential.
Super Client 1,4,9,16,25,36,channel central management software, no user number limitation ,
centralized surveillance, remote record and playback, alarm email ect.
System OS Embedded Linux OS
Control protocol ONVIF 2.0 protocol, high interoperability
Video coding Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture
Bit Rate CBR/VBR, output bit rate range:128~4096kbps
Processor Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
Video Compression Format H.264 baseline profile@levels:3.1/Motion-JPEG
Frame rate 30fps/24fps(720p)
Resolution 720P(1280*720), VGA(640*480), QVGA(320*240)
Picture Adjustment Contrast, Brightness, Saturation are adjustable.
Sensor 1/4 720p Progressive CMOS sensor
Minimum illumination 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
SNR ?39dB
IR control IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Electronic shutter 1/50s(1/60s)-1/100, 000s
CMOS support AWB, AGC, BLC
Lens/viewing angle 3.6mm/F1.4/56.14
Night Vision Night vision Dual IR-CUT Filter auto switch, 10pcs 850nm?5mm LED,10m IR distance
Audio Compression format ADPCM/32kbps
Input 1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone
Output 1 Channel Line out (3.5mm phone jack)&Internal speaker(8?1W)

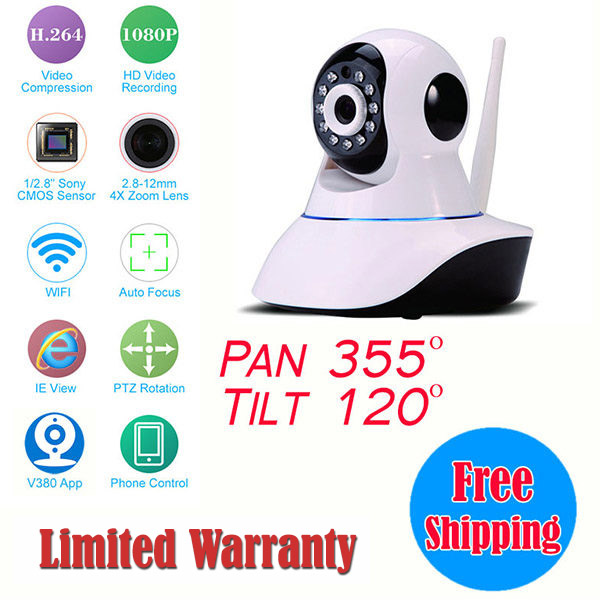

P/T P/T Pan:355°,Tilt:120°
Preset Postion suppor up to 6 preset postions
Network network interface 10Base-T/100Base-TX Ethernet interface
Network Protocol TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.
wireless network security WPS encryption
Online visitor Support 5 online visitors simutaneoursly
IP address Dynamic IP and static IP address
WIFI WIFI 802.11 b/g/n
Others housing material engineering plastics
Application environment Indoor
Rated Voltage DC5±0.3V
Temperature -10~50 °C
Power consumption rated power:3.5W(IR opening )/maximum power:7W(P/T working )
Package size 182*163*125mm (L×W×H)
Weight Gross Weight :545g(Note: in kind prevail)
Accessories Power adapter, user manual, warranty card, mounting bracket.
Alarm Motion Detection Support motion detecting
System Requirement System configuration Win/XP,Vista,win7 win8 iPhone iOS4.3,The android version 2.3 or higher

Packing Details
Unit Type: piece
Package Weight: 0.555kg (1.22lb.)
Package Size: 19cm x 17cm x 13cm (7.48in x 6.69in x 5.12in)
