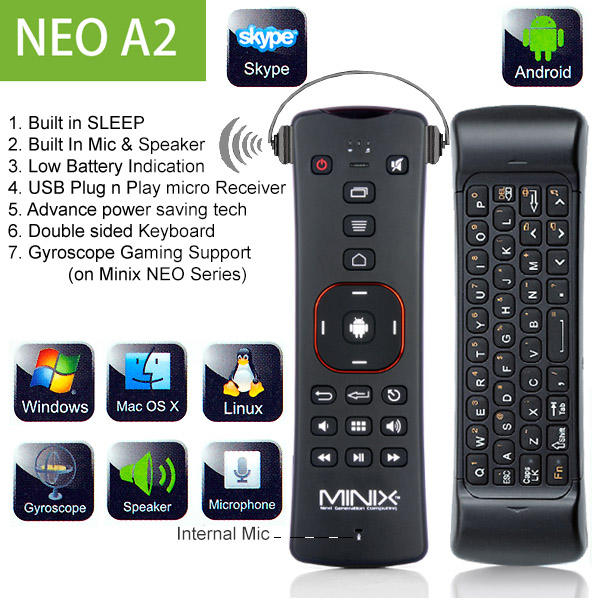

*Key Functions
LED INDICATORS - There are 3 LED indicators on the control;
The first indicates power, the second detects whether audio
is available, and the third indicates if the audio function
is active.
SPEAKER - At the top there is a small slot for the speaker.
POWER BUTTON - This key can switch off the MINIX NEO Series
devices.
MUTE - Mutes audio.
RECENT APPLICATIONS - Displays the list of last used
applications on the system.
ANDROID MENU - Shows the application menu.
HOME - Brings you back to the Android Homepage.
BUTTON CONTROL - In the middle there is a directional pad
and the central Android button mouse works as a left click /
'OK' button.
BACK - Android back button.
ENTER - key keyboard intro.
FUNCTION - Use this button to activate gyro mode and
air-mouse.
MAIN MENU - Between the both volume keys is the main menu
button, which works with certain applications menu.
VOLUME - / + - to increase/decrease the system volume.
PLAYBACK CONTROLS - Rewind, pause and fast-forward whilst
playing content.
MICROPHONE - At the bottom there is a small slot for the
microphone.

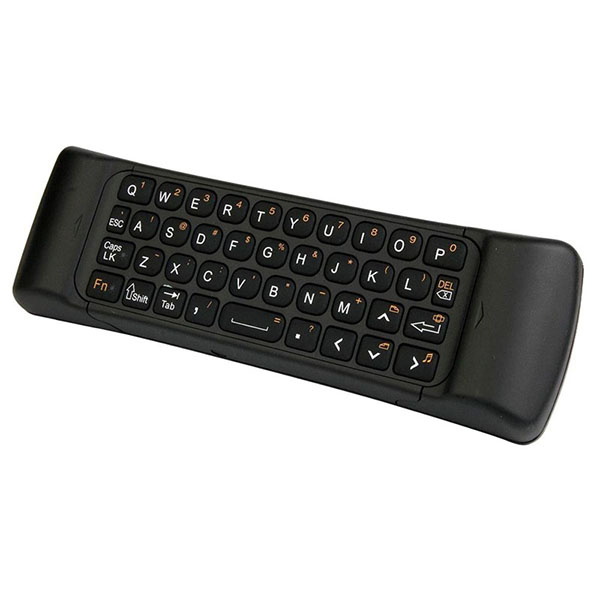

*Special Features
To activate special functions you need to hold both the FN
key and another key:
FN - Function key, to activate controls and orange
characters.
FN + ">" - Disables audio.
FN + "ENTER" - Command changes the orientation , vertical or
horizontal, important for gaming.
FN + "P" - Re-synchronize command.
FN + "Y" - Re-position the gyroscope feature.
FN + "UP / DOWN ARROWS" - Scroll up and down when reading
pages.
*Audio Output Instructions
When the USB receiver is plugged into your Android device,
audio output should automatically be redirected to the MINIX
NEO A2. If you wish to adjust follow these instructions:
- Go to "Settings" -> "Sound" -> "Sound Devices Manager"
- Select your preference from the list of 'Sound Input
Devices' and 'Sound Output Devices'
*Power Saving Hints
We recommend using Alkaline batteries, to prolong the
battery life when using the NEO A2.
Remember to disable the gyroscope function when not in use,
this feature only needs to be enabled when playing games.
Disable the audio feature (built-in
microphone and speaker) when not in use, ensure that 'Sound
Output Devices' settings is set to RK29_RT5616.
You are advised to unplug the NEO A2 USB receiver from your
MINIX box when it's not in use. |
 |
